Products > T-Beams / M-Beams

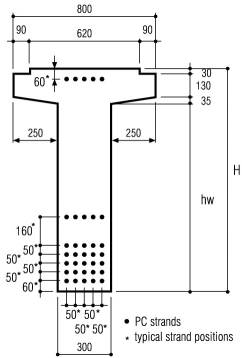

OKA PRESTRESSED (PRETENSIONED) T-BEAMS
PDF Brochure

JKR STANDARD T-BEAMS:PRT 1, PRT 2, PRT 3(FOR SPANS UPTO 22M)
JKR MODIFIED T-BEAM:PRT M(FOR SPANS UPTO 28M)





_______________________________________________________________________________________________________________


  tbeam-1a_12.jpg T-Beams-2a_4A.jpg

Specifications
 1.Prestressing strands : Low relaxation 7-wire strands to BS 5896:1980; nominal diameter 12.9mm (10m span), nominal diameter 15.7mm (>10m span),
 2. Concrete characteristic strength : 50N/mm2, nominal concrete cover : 50mm,
 3.Typical cross beams : end cross beams 400 x 850mm; intermediate cross beams 600 x 850mm at every 9m or less,
 4.Customized beam designs upon request.





 TYPICAL SECTION OF CARRIAGEWAY





OKA PRESTRESSED (PRETENSIONED) M-BEAMS         M-Beams-0a_4A.jpg








Note
1.Prestressing strands are 12.9mm diameter 7-wire super strands (low relaxation) conforming to BS 5896:1980.
2. It will be more economical (no additional production costs) if designers adopt the standard layout for prestressing strands as shown above.






Download PDF Brochure
