Products > U-Shape Drains



PDF Brochure

OKA RC U-SHAPE DRAINS

U-DRAINS WITHOUT
DRY WEATHER FLOW (DWF) CHANNEL
U-DRAINS WITH
DRY WEATHER FLOW (DWF) CHANNEL

DESIGN AND SPECIFICATIONS

1.Structural design in accordance with requirements of BS 8110:1997
2.
Concrete characteristic strength :
30N/mm- 40N/mm2
3.
Concrete cover :
Standard Size U-Drains - 25mm; Super Size U-Drains - 30mm
4.
Loading criteria are shown below :

For other design considerations or specifications not shown here, please contact our Technical Department


HANDLING, STACKING, LAYING, JOINTING AND BACKFILLING

•  Handling :A spreader beam to be used with steel pins and lifting cables to avoid cracking at junction of side wall and base slab.
•  Stacking : U-drains are to be stacked on level and stable ground to avoid cracking of base slab.
•  Laying : U-drains should be laid on prepared bedding to ensure uniform support under the full width and length of the U-drains.
•  Jointing : Butt joints.  Gaps normally to be filled up with cement-sand mortar.
•  Backfilling : Backfilling with selected free draining backfill material.  Avoid use of heavy vibratory equipment next to side walls.




STANDARD SIZE U-DRAINS (PAGE 1 OF 1)

 OKA U-DRAINS COME IN STANDARD LENGTH OF 1 METRE



STANDARD SIZE U-DRAINS - DIMENSIONS AND PRODUCT WEIGHT


* NON STANDARD SIZES AND NON STANDARD LOADING CONDITIONS CAN BE MANUFACTURED UPON REQUEST



SUPER SIZE U-DRAINS  (PAGE 1 OF 2)

 OKA U-DRAINS COME IN STANDARD LENGTH OF 1 METRE

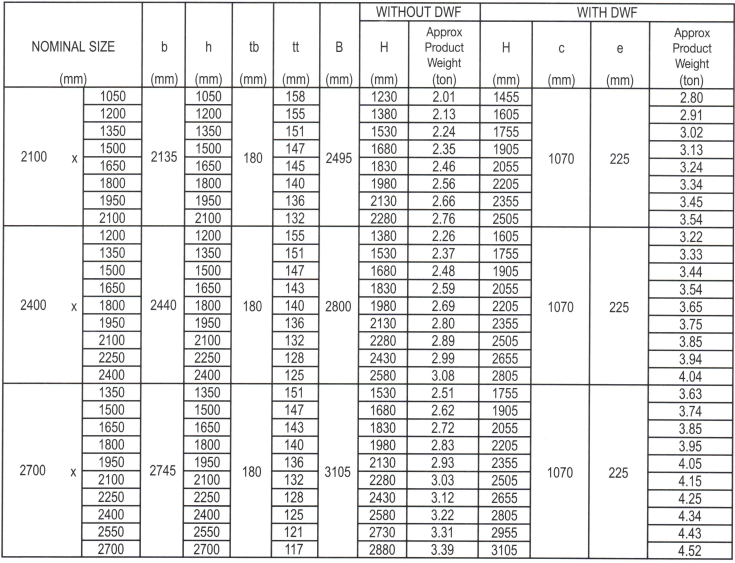

SUPER SIZE U-DRAINS - DIMENSIONS AND PRODUCT WEIGHT






SUPER SIZE U-DRAINS  (PAGE 2 OF 2)

* NON STANDARD SIZES AND NON STANDARD LOADING CONDITIONS CAN BE MANUFACTURED UPON REQUEST
